FlexSEM1000 II
FlexSEM1000 II
FlexSEM1000 II
FlexSEM1000 II
FlexSEM1000 II
FlexSEM1000 II

FlexSEM1000 II

The FlexSEM is a tabletop or floor standing electron microscope combining the performance and flexibility of a full size SEM with the simplicity of a tabletop SEM

Hitachi FlexSEM 1000 Variable-Pressure Scanning Electron Microscope

Full-SEM imaging performance:

• Resolution similar to a full size SEM
• Observe morphology (SE), composition (BSE) or both on conductive or insulating samples
• Full control over acceleration voltage, beam current and vacuum level


High-Performance Elemental Analysis:

• Fast and accurate elemental analysis using integrated EDS from leading suppliers
• Show true elemental distribution using live peak deconvolution
• Operate EDS up to 20kV to give access to more peaks


Safe and easy specimen handling:

• Use the navigation camera to locate region of interest
• Easily overlay and correlate your SEM and optical images
• Examine wide areas with image stitching
• Handle large specimens using the 5 axes stage


Go further:

• Automated particle analysis for technical cleanliness, asbestos, inclusions, fibres, etc.
• Image hydrated specimens using a cold stage or Hitachi’s patented ionic liquid
• Add STEM for transmitted electron imaging or CL for geological/pharmaceutical samples.
• Study 3D surface metrology with depth/angle/roughness measurements



Ask for a quote

Contact Sten about this product

Sten Sturefelt

+46 709 119 281

Email to sten@spectral.se

 Contact us

Powerful SEM in a compact format

The FlexSEM from Hitachi is a benchtop or floor-standing electron microscope that integrates the flexibility and performance of a full-size SEM with the ease of use of a tabletop SEM.

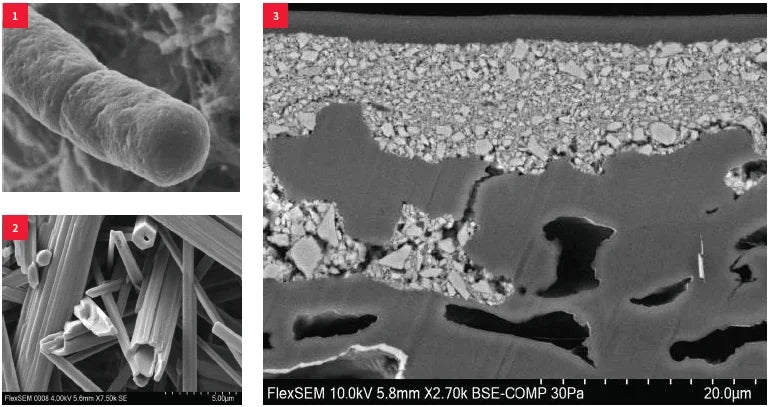

(1) Bacteria, 7 kV, magnification 20,000x; (2) Pharmaceutics, magnification 7,500x; (3) Paper, low-vacuum, 2,700x

Powerful SEM in a compact format

The FlexSEM from Hitachi is a benchtop or floor-standing electron microscope that integrates the flexibility and performance of a full-size SEM with the ease of use of a tabletop SEM.

(1) Bacteria, 7 kV, magnification 20,000x; (2) Pharmaceutics, magnification 7,500x; (3) Paper, low-vacuum, 2,700x

Fast navigation

With a fully incorporated navigation camera, users can rapidly find their way around their sample. Users can effortlessly overlay and correlate their optical and SEM images to know exactly where they are and what they have done at all times.

Fast navigation

With a fully incorporated navigation camera, users can rapidly find their way around their sample. Users can effortlessly overlay and correlate their optical and SEM images to know exactly where they are and what they have done at all times.

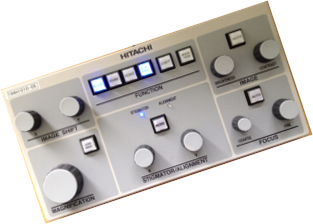

Easy operation

If you have been using SEM before, you will know how convenient it is to have a knob panel allowing you to use both hands to adjust focus, astigmatism, brightness or contrast quickly. The FlexSEM allows both mouse driven operation and classical knob panel. In addition you can choose between joystick or trackball for stage movement.

Easy operation

If you have been using SEM before, you will know how convenient it is to have a knob panel allowing you to use both hands to adjust focus, astigmatism, brightness or contrast quickly. The FlexSEM allows both mouse driven operation and classical knob panel. In addition you can choose between joystick or trackball for stage movement.

Advanced elemental analysis

The built-in X-ray microanalysis (EDS) system from prominent suppliers, such as Bruker or Oxford Instruments, guarantees precise and rapid elemental analysis with sophisticated features that are present in other benchtop SEMs. Real-time peak deconvolution makes sure that spectral line overlaps are eliminated to offer real elemental distribution and thus prevent inadvertent misinterpretation.

Advanced elemental analysis

Aztec One GUI

The built-in X-ray microanalysis (EDS) system from prominent suppliers, such as Bruker or Oxford Instruments, guarantees precise and rapid elemental analysis with sophisticated features that are present in other benchtop SEMs. Real-time peak deconvolution makes sure that spectral line overlaps are eliminated to offer real elemental distribution and thus prevent inadvertent misinterpretation.

Variable pressure or high vacuum

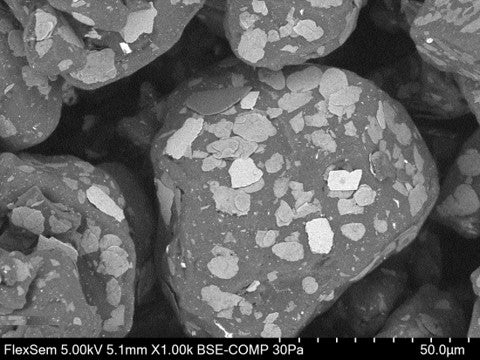

With the FlexSEM you can choose between operating in high vacuum for conductive samples or in variable pressure if your samples are insulating. You have access to both SE and BSE detectors in both vacuum modes making it possible to capture surface and/or compositional information for any kind of sample.

Variable pressure or high vacuum

With the FlexSEM you can choose between operating in high vacuum for conductive samples or in variable pressure if your samples are insulating. You have access to both SE and BSE detectors in both vacuum modes making it possible to capture surface and/or compositional information for any kind of sample.

Frequently asked questions about FlexSEM1000 II
